GYGD-DI
GOLD
Applications of the Dual Camera Borehole Camera
Stratum structure divide Well wall stratum crack
Karst development discrimination
Distinguish fractured development zone
Determine the karst distribution position
Long time underground borehole monitoring
Technical Parameters of the Borehole Camera
| No. | Description | Parameter | Remarks |
| 1 | Winch | Manual or electric | |
| 2 | Cable | Type: 6 core twist pair | |
| Tensile strength: 500Kg | |||
| 3 | Cable length | 100~1500m | |

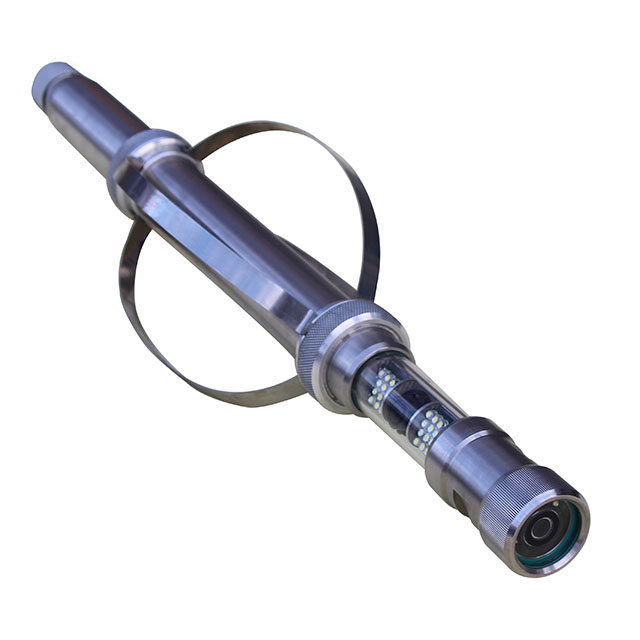

| 4 | Probe | Fixed down view camera + 360° rotate side view camera for wider angle viewing | |
| Diameter: 50mm,75mm Length: 530mm | |||
| 5 | Sensitivity | 0.01 Lux | |
| 6 | Power supply | 220V | Depends on customer’s needs |
| 7 | Screen | 7” HD colorful display | |
| 8 | Storage | 8G SD card | 32G SD card for optional |
| 9 | Resolution | 680TVL | |
| 10 | Sensor | SONY 1/3 CCD , wide angle lens | |
| 11 | Max pressure | 15MPa | |
| 12 | Control box | Aluminum alloy | |
| 13 | Working temperature | -20℃~+60℃ |

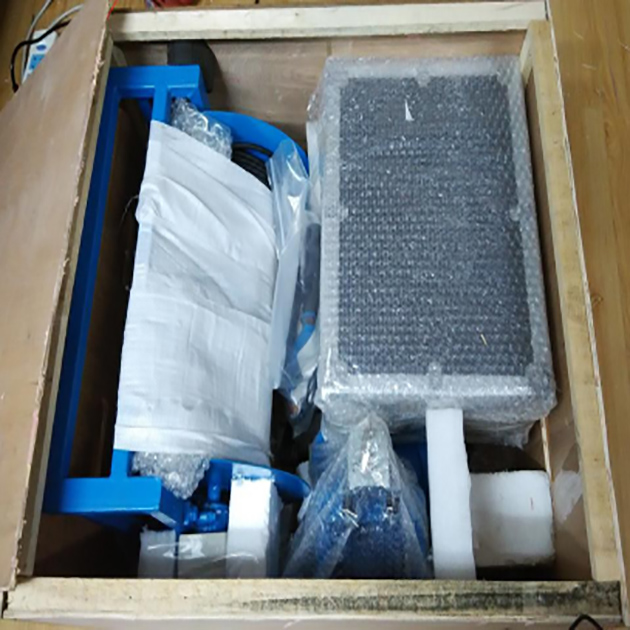

Standard Configuration of the GYGD-DI Borehole Camera
No |
Specs |
Remark |
| Control box | Blace, yellow for option | |
Winch |
710*440*400 mm |
Aluminum alloy |
Display |
7” LCD Color Monitor |
14 inch (optional) |
Sensor |
Diameter 75mm |
50mm (Optional) |
Ground Unit |
400*300*180 mm |
220V |
DVR |
400*300*145 mm |
Min DVR and SD Card |
Pulley |
300*280*255 mm |
Deep display |
Cable |
100-1500m |
Logging cable |
Connect line |
Power line, data line |
