GYGD-III
GOLD

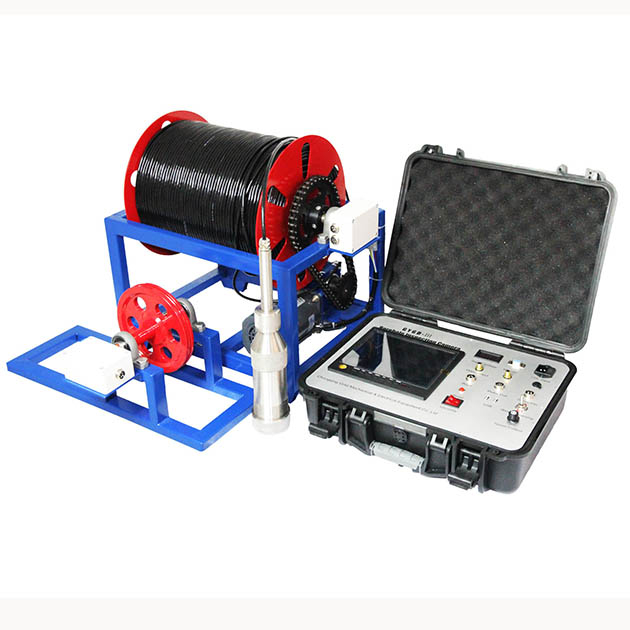

Features of GYGD-III Borehole Camera:
1. Lightweight and practical: Electric winch adopts automatic braking device, compact structure, light weight and durable.
2. Stable and reliable: The borehole camera uses devices and firmware modules, which greatly reduces the use of separate devices, thereby improving the stability of the system
3. The panoramic probe is made of stainless steel, with a very brilliant design, leads to excellent water resistance, high pressure resistance and high temperature resistance
4. The camera inside the underwater probe adopts Sony 1/3 Sony industrial-grade wide dynamic high-speed camera, with vivid images, high definition and delicate
5. The glass cover is made of high quality and excellent tempered crystal glass, so the lens is not easy to break.
6. Real-time storage function, and playback video at any time
Applications of GYGD-III Borehole Inspection Camera:
Rotary borehole camera has function of collection and retracting
The borehole camera can observe abnormalities and defects in various boreholes and observation piles;
Water well maintenance;
Detecting cracks, misalignment of well walls;
Falling objects; Clogging of filter pipe holes and quicksand position, etc.
Applicable to oil fields, geological frozen holes, geological prospecting, geotechnical engineering, engineering quality inspection and other related industries.
Technical Parameters of the Borehole Inspection Camera:
No. | Configuration | Dimension | Specification |
1 | Camera probe | Diameter: 50/70mm Length: 470mm | 1. Camera lens are manufactured with high-quality resins. 2. High-quality steel body with solid structure, not easy to be damaged. 3. Maximum bearable pressure: 20Mpa (can reach the depth of 2000m under water) 4. 6-12 LED lamps are available |
2 | Camera | 1. Sony inducer 1/3’’ CCD 2. HD 850 TVL image definition 3. Waterproof 4. Panoramic lens camera | |
3 | Specialized cable | Length: 0-2000m (optional) | 1. With steel wire 2. Max bearable tension: 260kg |

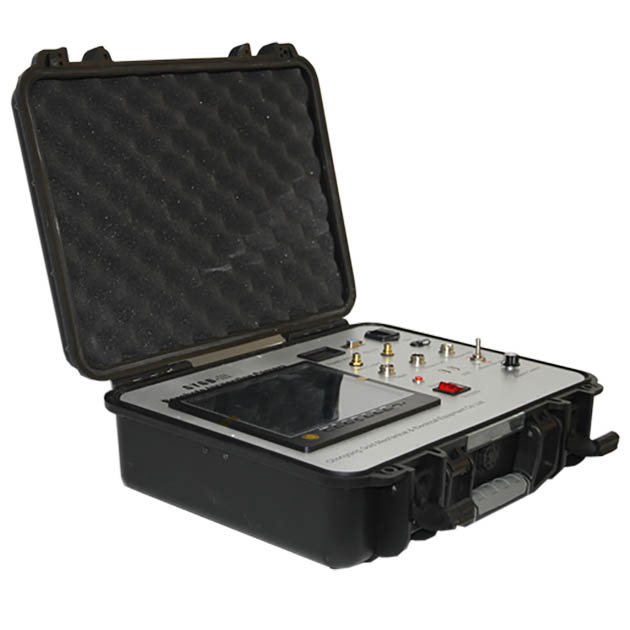

4 | Control unit | 1. 220V/380V/12V optional voltage mode 2. Aeronautic aluminium case | |
5 | Downhold pulley | Logging depth counter equiped | |

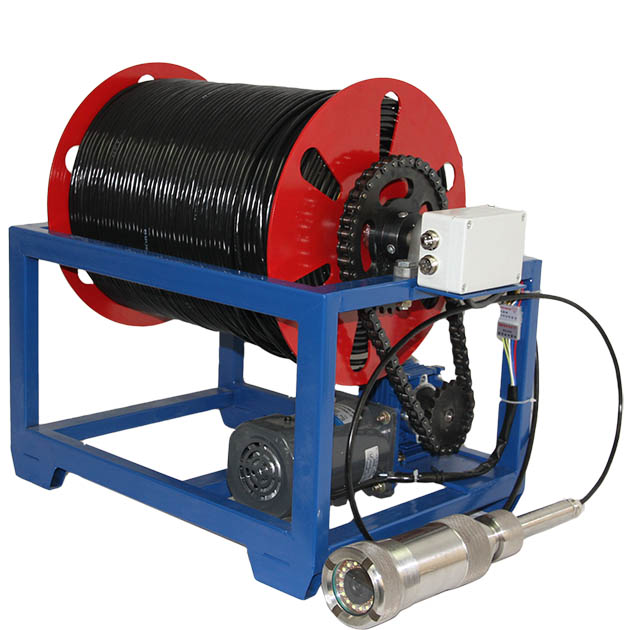

6 | Logging winch | Manual & electric winch available | |
7 | HD DVR | SD card |
