GYGD-IIS
GOLD

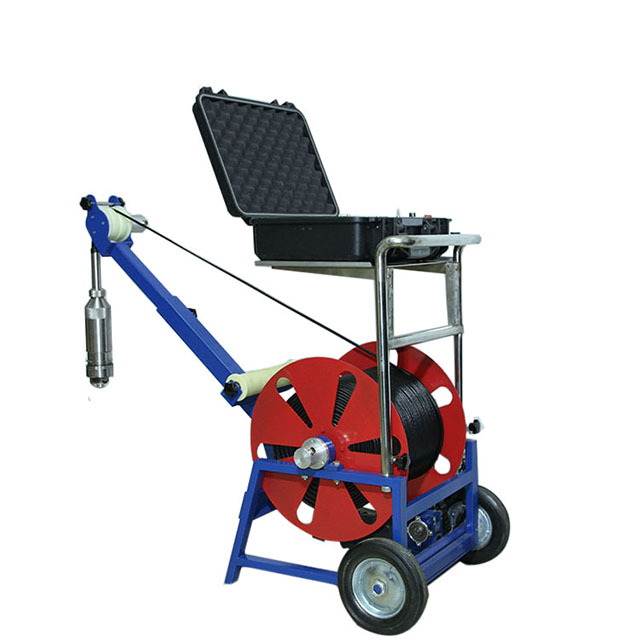

Features of GYGD-IIS Borehole Inspection Camera:
It has the advantages of waterproof, high pressure resistance, etc. Also has characteristics of easy operation, large amount of data, clear images, real-time image monitoring and acquisition, can display clear images, and can use SD cards to save monitoring data. Especially under the conditions of dry holes and clear water holes, very clear color images can be obtained in real time, which provides a reliable basis for handling various accidents in the holes, and has unique intuition and authenticity.
Applications of GYGD-IIS Borehole Camera:

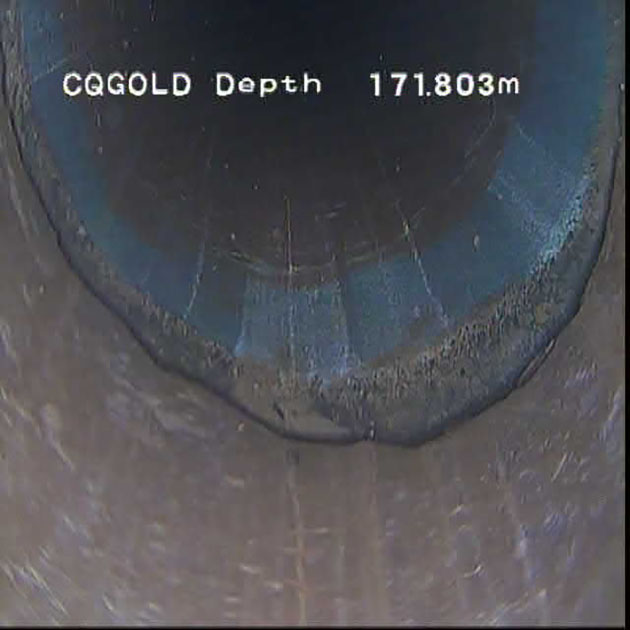

Rotary borehole camera has function of collection and retracting, the borehole camera can observe abnormalities and defects in various boreholes and observation piles; water well maintenance; detecting cracks, misalignment of well walls; falling objects; clogging of filter pipe holes and quicksand position, etc. Applicable to oil fields, geological frozen holes, geological prospecting, geotechnical engineering, engineering quality inspection and other related industries.
Technical Parameters of GYGD-IIS Water Well Camera:
Monitor | Monitor | 8" Digital LCD screen(4:3) |
TV system | PAL / NTSC | |
Resolution | 1024×768 | |
Video channel | 1 channel input & 1 channel output | |
Power supply | AC220V 50Hz; DC12V ±5% and 24V Optional | |
Power consumption | <7.5W | |
DVR function | DVR function (support up to 32GB SD card) | |

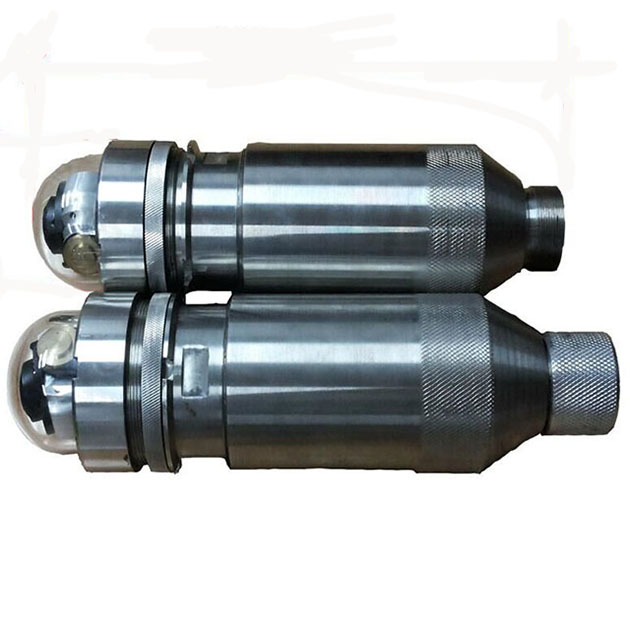

Probe | Camera | Color SONY CCD |
TV lines | HD 850 TVL | |
Image | Panoramic imaging, no need to focus | |
Night visibility | 16pcs White LED light | |
Shell | Stainless steel | |
Pressure | 20MPA | |
Diameter | 45mm/70mm | |
Waterproof | IP66 | |
Winch | Type | Electric, manual optional |
Power source | 220V | |
Winch capstan | Iron punching reel | |
Motor | Permanent magnet DC motor | |
Cable | Length | 0~2000m |
Cable type | 6-core twisted pair reinforced cable, with steel cable in the middle | |
Tension | 250Kg(damage tension 260Kg) | |
Working temp. | -20 ~ +60 centigrade | |
Storage temp. | -30 ~ +70 centigrade | |
Languages | Chinese, English | |

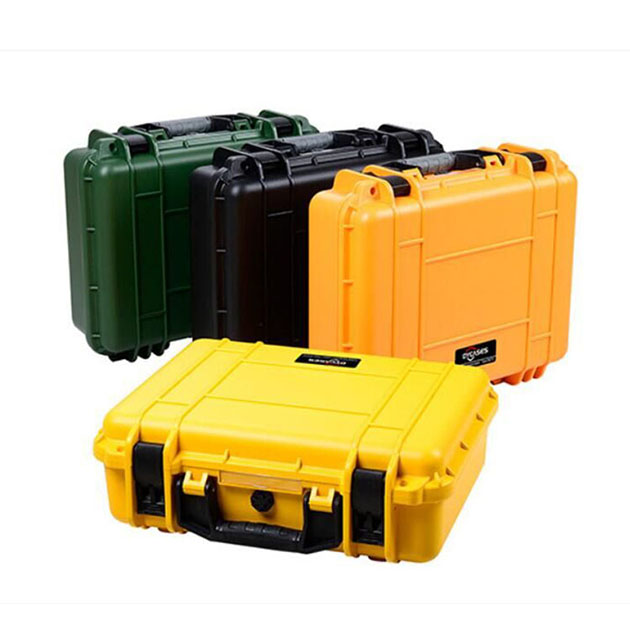

Accessories | Camera, Reel with cable, Power Connectors, User manual, Carrying case |
