GD
Gold
9015800090
Application：
High strain bearing capacity detection of pile
Low strain pile integrity detection by reflected wave method (optional)
Applicable standards
Standard Test Method for High Strain Dynamic Testing of Deep Foundations ASTM D4945-12
Technical Code for Detection of Building Foundation Pile JGJ 106-2014
Dynamic Testing Technology Regulations on Highway Engineering Foundation Pile JTG/T F81-01-2004
Nondestructive Detection Code for Railway Engineering Foundation Pile TB 10218-2008

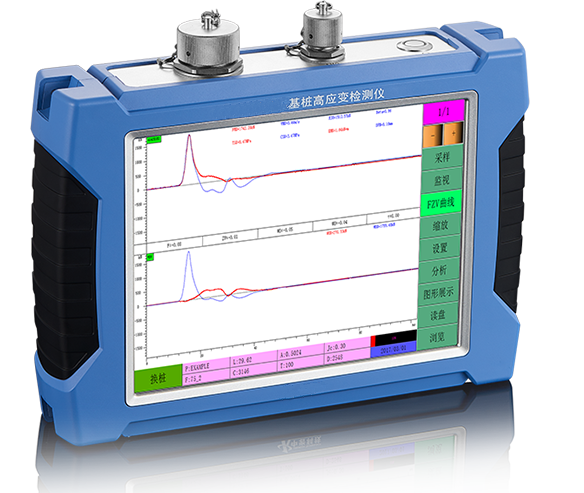

Model | High Strain |
Display method | 8.4-inch true-color LCD screen |
Resolution: 800×600 (adjustable backlight) | |
Storage capacity | 16G electronic hard disk |
Master control system | Low power embedded system |
Basic frequency≥1GHz Memory: 512M | |
Sampling interval | High strain: 10-500μs multi-level adjustable |
Low strain: 5-1000μs continuous adjustable | |
Floating point magnification | 1～256 |
Recording length | 1k |
A/D conversion accuracy | 24-bit instantaneous floating point |
System noise voltage | ＜20μV |
Dynamic range | ≥100dB |
Data export method | USB |
Frequency bandwidth | 2～12000Hz |
Sensor bandwidth | 0.5～9000Hz |
Power supply mode | Removable lithium battery; desktop charger is supported |
Service life≥8h | |
Operation mode | Touch screen |
Number of channels | High strain: four channels |
Low strain: one channel | |
Acquisition mode | Acceleration for two channels + strain for two channels |

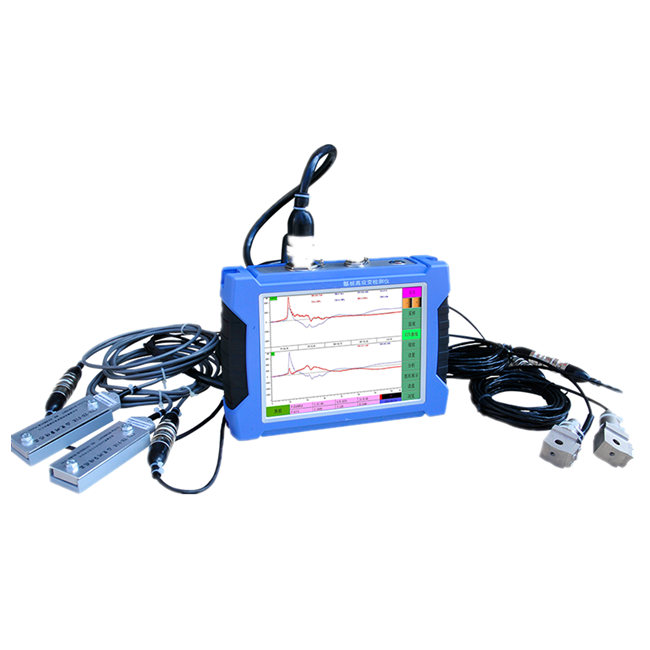

Sensor | Piezoelectric accelerometer, strain ring and speedometer |
Trigger level | Seven-level selectable |
Operating temperature | -20～+55℃ |
Shell | High-strength engineering plastics |
Dimensions | 255×180×60mm |
Weight | 1.8kg (including lithium battery) |
