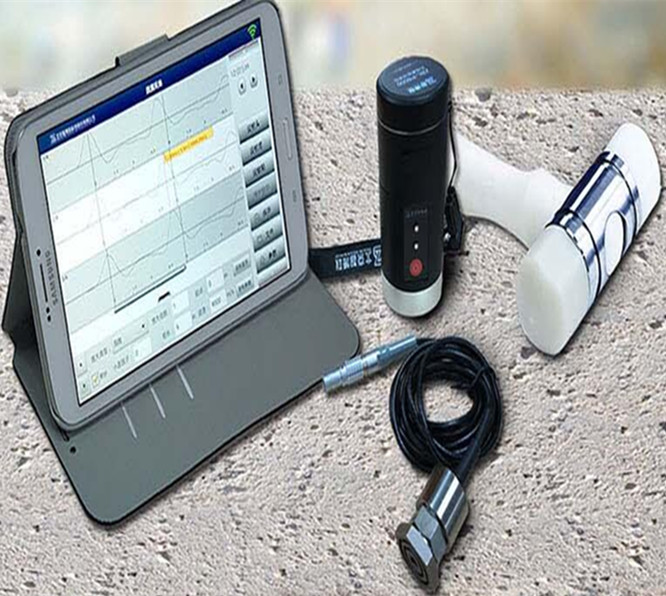

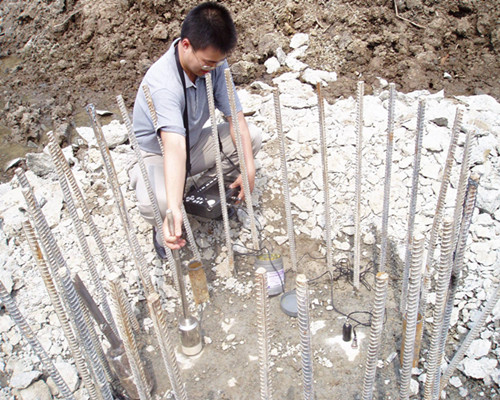

By using the reflected wave method, the device is used to assess the integrity of concrete pile and identify the extent and location of the pile defect. It can be used for testing bored concrete pile and hammer pile. It can also be used for testing the constructions with an exposed top surface such as pillars.
Item | Specifications | |

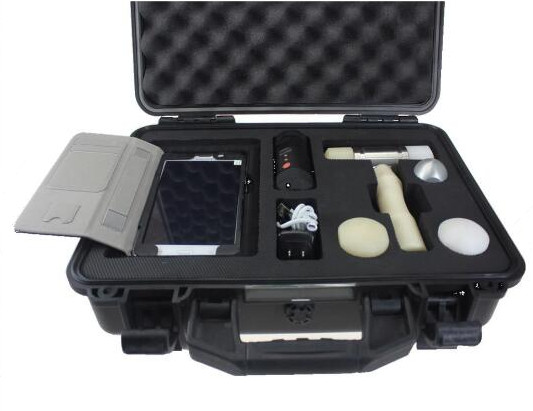

Model | P8000 | |

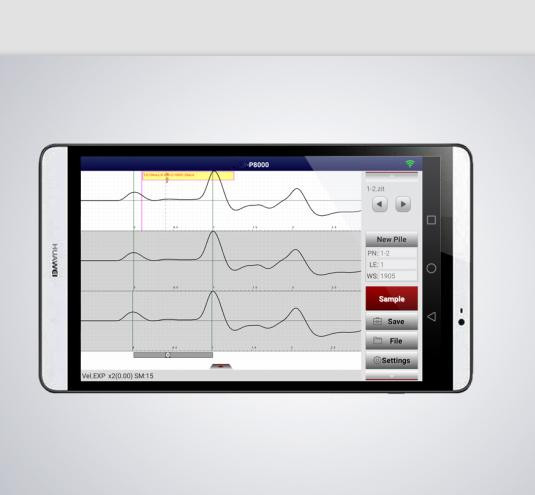

Control Mode | Android platform | |
Screen | High brightness, TFT color LCD screen | |
Data Storage | ≥8GB | |
Operation Mode | touch screen | |
Sentinel magnify (time) | 1、2、4、8、16、32 adjustable | |
A/D resolution (bit) | 24 bits A/D | |
Sampling time intervals(μs) | 6.4～1638.4 adjustable | |
Max length of sampling | ≥2048 | |
Trigger | Signal trigger | |
Noise voltage of the system (mV) | ≤2 | |
Dynamic range（dB） | ≥180 | |
Amplifier frequency range（Hz） | 1～10k | |
Max storage length | 2048 | |
Amplitude nonlinear degree | ≤10% | |
Fixed point magnification | 1, 2, 4, 8, 16, 32,64 | |
Error of time indication | ≤1% | |
Time resolution（us） | 6.4 | |
Gain error（dB） | ≤1 | |
Continuous working time(h) | >5 | |
Number of channels | 1 | |
Interference between the channels | no | |

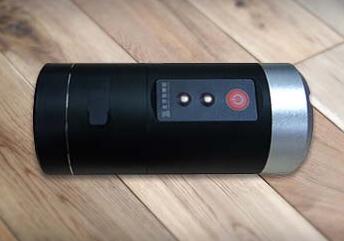

Transducer/Probe Sensitivity （acceleration mode）（mv/g） | ≥100 | |
Frequency range of Probe （Acceleration probe） （Hz） | 0.5 ~ 9000 | |
Power | Internal | Built-in-battery |
External | 220V AC/DC | |

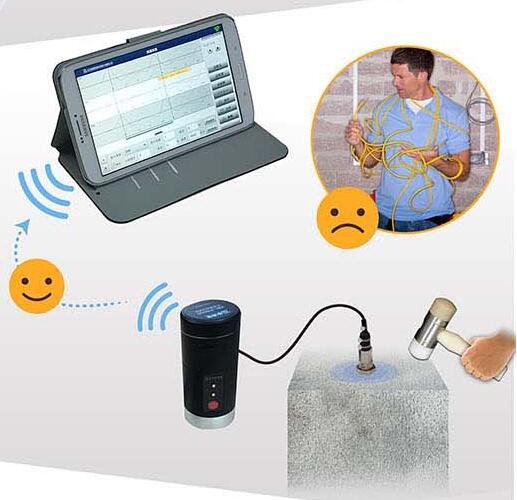

Wi-fi | yes | |
Weight（kg） | 0.34kg（lithium battery included） | |
Total volume(mm) | φ5×120 | |
